Gowrihouse Metal Works LLP

Wood Screws

Wood Screws are designed specifically for use in wood application. The threads are designed to give the greatest drilling and holding power when screwing into wood. The gimlet point style allows easy hole starting. While the smooth shank at the top allows the screw to seal the pieces of wood together as the screw is tightened.

Rajapalayam Gowrihouse Metal Works LLP is a leading manufacturer and supplier of a comprehensive range of Wood Screw, which are used for tightening or loosening in diverse industrial purposes. Moreover, our clients can avail these screws in various sizes and specifications to fulfill various industrial requirements.

Material Grade ; SAE 1008
The following coatings are also available; Zinc/ Nickel/ Antique/ Black

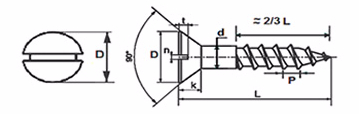

WOOD SCREWS SLOTTED COUNTERSUNK HEAD

SIZE #		2	3	4	5	6	7	8	9	10	12	14
HEAD DIA(D)	Min	3.90	4.50	5.20	5.90	6.60	7.30	8.00	8.70	9.40	10.70	12.10
HEAD DIA(D)	Max	4.20	4.80	5.50	6.20	6.90	7.60	8.40	9.00	9.80	11.20	12.60
SHANK DIA(d)	Min	1.98	2.29	2.64	2.97	3.33	3.68	4.04	4.39	4.72	5.38	6.05
SHANK DIA(d)	Max	2.16	2.46	2.84	3.23	3.58	3.94	4.29	4.65	5.00	5.72	6.43
SLOT WIDTH(n)	Min	0.74	0.86	0.86	0.99	1.11	1.11	1.24	1.24	1.37	1.50	1.75
SLOT WIDTH(n)	Max	0.84	0.97	1.02	1.14	1.27	1.27	1.40	1.40	1.52	1.65	1.90
SLOT DEPTH(t)	Min	0.46	0.51	0.56	0.69	0.79	0.84	0.89	0.97	1.02	1.12	1.22
SLOT DEPTH(t)	Max	0.61	0.69	0.76	0.91	1.04	1.14	1.22	1.30	1.37	1.55	1.70
PITCH(P)		0.98	1.06	1.15	1.27	1.41	1.59	1.81	2.12	2.12	2.54	2.82
HEAD HEIGHT(k)		1.17	1.32	1.50	1.75	1.98	2.16	2.34	2.51	2.69	3.05	3.40

All dimensions are in mm.
